BOSCH Battery tester BAT 131

For 6 V/12 V starter batteries, including EFB test software and printer

Part no.: 2500684400731

Further information

Areas of application:
Cars/commercial vehicles, motorcycles, ships
Battery voltage (V):
Cold cranking current EN (A):
100 - 2000
Dimensions L x W x H (mm):
270 x 113 x 50
Menu in 25 languages
Operating temperature (°C):
0 - 40
2,30 kg
EAN codes:
To be found in category:
ElectricsBatteriesAccessories & maintenanceMeasuring and test equipmentBattery testerBOSCH BAT 131

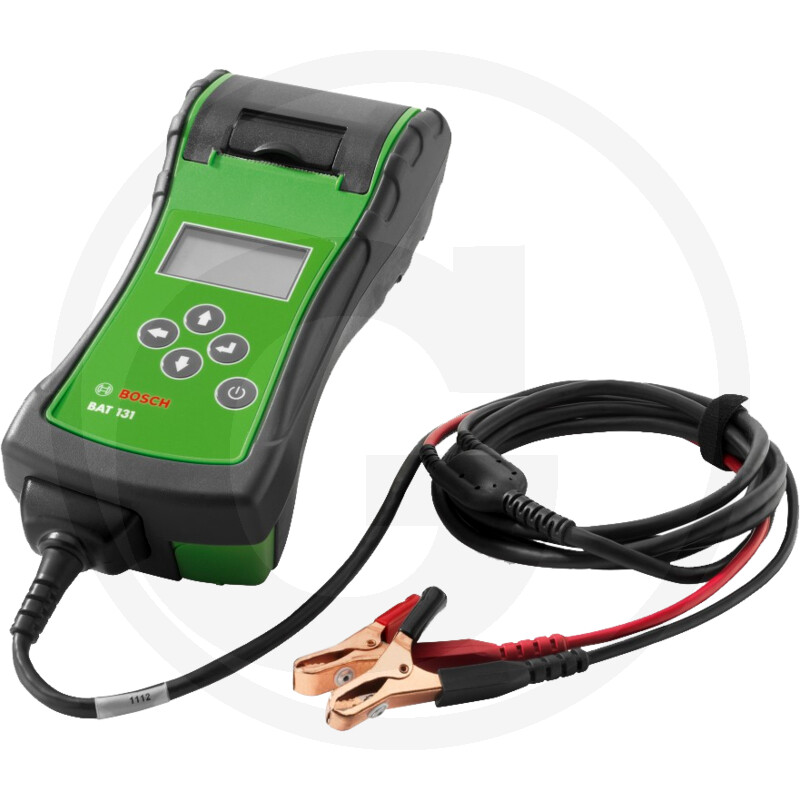

The BAT 131 is a portable battery tester for cars, commercial vehicles and motorcycles. It can be operated with one hand, has a large LCD display and a multilingual menu. It is suitable for testing according to the CCA, DIN, JIS, EN, SAE, IEC and EN2 standards.

The tester is designed for 6 V and 12 V starter batteries (lead acid, EFB, gel, fleece and AGM). A clamp-on ammeter can be used to test 12 V and 24 V starting/charging systems. This enables more comprehensive tests and improved test results.

Features and advantages:
• Extended test mode: for tests on 12 V and 24 V starting/charging systems
• Special clamp-on ammeter (accessory): for broader and even more precise measurement results
• Optimised test algorithm - for testing brand new, unused and stock batteries
• Non-loading test procedure - fast, precise and reliable measurement results
• Large LCD screen - easy to read
• Menu-driven, intuitive operation in multiple languages - user-friendly
• Integrated printer - customers receive clear and understandable graphical printouts
• Save up to 100 test results - service histories can be recorded
• Future-proof design - software updates via USB port
• Freedom of movement and flexibility on the vehicle - 3 m long battery connection cable
• Lightweight: only 700 g for comfortable one-handed use
• Robust housing - durability for daily workshop use
• With the optional clamp-on ammeter (accessory), starting currents from 0 to 700 A can also be checked

• BAT 131 tester
• 3 m battery connection cable
• 6 AA batteries
• Printer paper
• Operating instructions
