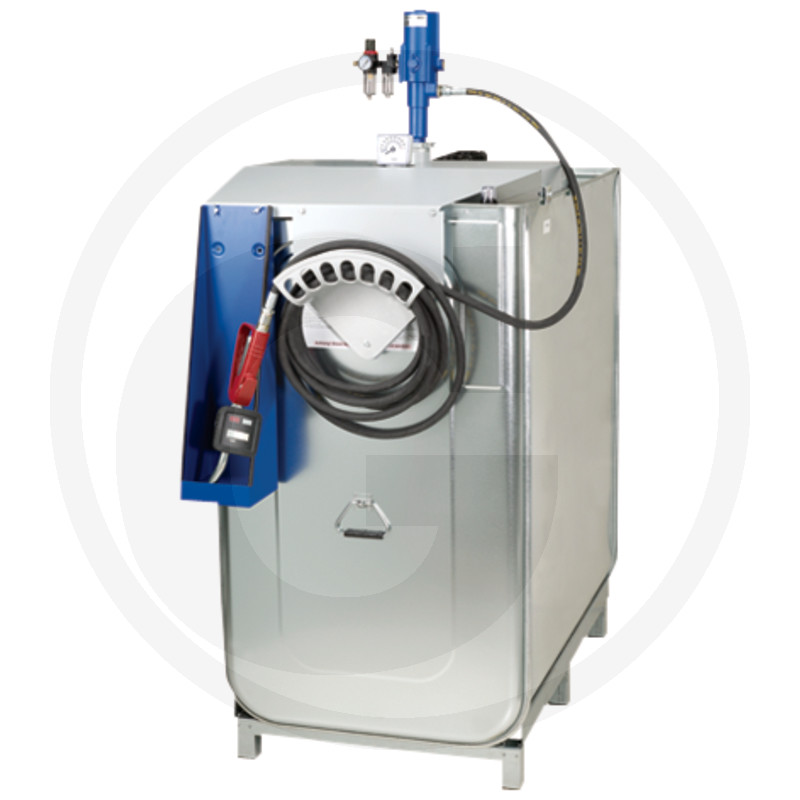

Compact filling station 1000 litres

1000 litres

Part no.: 50019000350

Further information

Dimensions L x W x H (mm):
1350 x 800 x 1850
Volume:
1000 litres
Weight:
1,00 kg
To be found in category:
Industry & workshopOil and lubrication technologySupply systemsFilling stations, stationaryCompact filling station 1000 litres
Specification
● Not calibratable
● Pneumatic oil pump 3:1
● Supply hose, 8 m, G 1/2" female/male
● Hose holder
● Suction fitting
● Maintenance equipment
● Mounting plate
● Tank, 1000 l, with filling level display and visual leak indicator
● With handheld flow meter, digital, outlet tube, anti-drip nozzle, automatic closure, swivel
● Holder for handheld flow meter, drip cup
Technical details
Tank
Tank contents (l): 1000
Outer container material: sheet steel, galvanised
Inner container material: HDPE (high-density polyethylene)
Connections: 4 x G 2" female, barrel screw joint
Empty weight (kg): 89
Filling: 2" filler neck
Application: for above-ground storage of fresh oils and hardly flammable oils
Oil supply: pneumatic pump 3:1
Hydraulic connection: Plug nipple for coupling Rectus, type 26, NW 7,2 mm
Oil delivery: handheld digital flow meter
Special features
● Completely mounted on fixed mounting plate
● Double-walled tank
● With general construction approval no. Z-40.21-288 from DIBt, Berlin
● For above-ground storage in enclosed spaces
● Integrated carry handles
● Steel pallet base, can be removed
