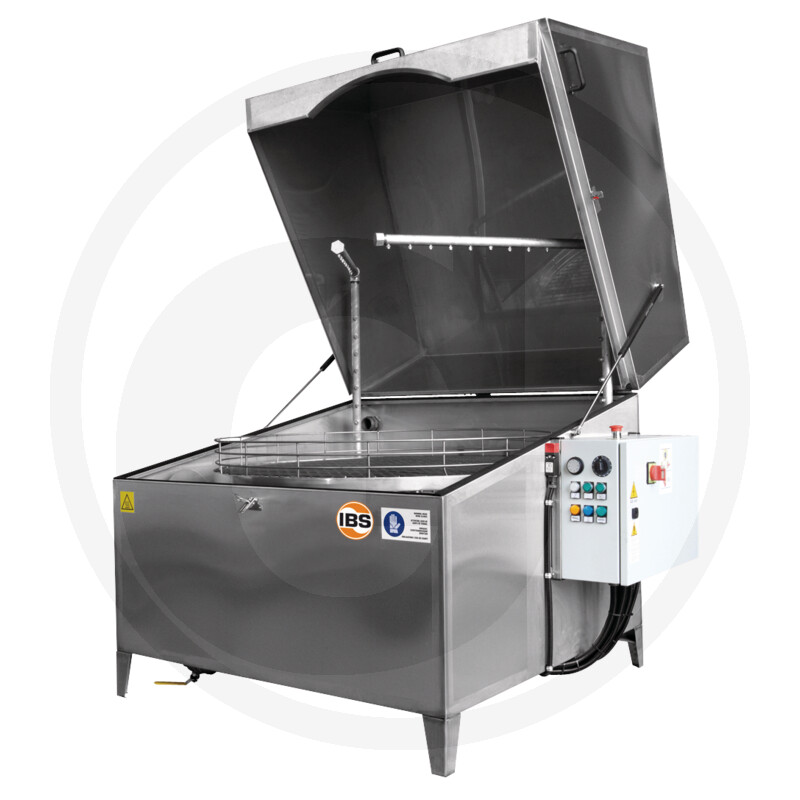

IBS Jumbo 115-2 washing machine

Part no.: 5002129901

Further information

Technical data:
Drum diameter: 1150 mm Wash tank capacity: 280 l Load capacity: 350 kg (up to 500 kg possible) Temperature: 0-60°C Flow pressure (pump): 2.3 bar Spray volume: 2x10,800 l/h Effective height: 700 mm Electrical connection: 13.5 kW / 400 V / 50 Hz / 32 A Heating power: 10 kW Material: stainless steel Dimensions (WxDxH closed / open): 1490x1750x1490/2260 mm
Additional information:
• Can be heated for aqueous cleaning agents
• Removes oil and grease in no time
• Universal use for automatic cleaning of large, heavy and heavily contaminated parts such as engines, gears, mixers, etc., and of small parts from production, manufacturing and maintenance, e.g. bolts, sleeves or ball bearings
• Easy to use thanks to the automatic cleaning process

The washing tank is filled with a mixture of water and water-soluble IBS special cleaner (lye). The contaminated components are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the device is switched on and the lye in the tank is heated. Inside the closed unit, the basket rotates at a constant speed around its own axis. The components are blasted intensively with hot lye from all sides with uniform rotation of the motor-driven basket. After the cleaning process has ended, the unit shuts off automatically.

Equipment:
• 2 pumps arranged horizontally
• 6 three-dimensional nozzle pipes made ​​of stainless steel
• Rotating washing basket made of stainless steel
• V-belt drive via separate motor
• Steam outlet
• Screen plate with 2 filter baskets made ​​of stainless steel above the washing tank
• Low water level protection
• Feet with individual height adjustment
EAN codes:
04030209290014
To be found in category:
Industry & workshopWorkshop equipmentDetergents for machine and workshopParts cleaning equipmentAutomatic washer Jumbo 115-2
Heatable for aqueous cleaning agents. Removes oil and grease in no time.

Universal use for fully automatic cleaning of large, heavy and heavily contaminated parts such as engines, gearboxes, mixers, etc., but also small parts from production, manufacturing and maintenance, e.g. bolts, sleeves or ball bearings.

Function:
Easy to use thanks to fully automatic running-off cleaning process. The washing tank is filled with a mixture of water and water-soluble IBS special cleaning agent (lye).

The contaminated components are placed in the rotating wash basket and the lid is closed.

After setting the desired washing temperature and time, the device is switched on and the lye is heated in the tank. In the closed cabinet, the basket rotates at a constant speed around its own axis.

The components are blasted intensively with hot lye from all sides with uniform rotation of the motor-driven basket.

After the cleaning process, the unit switches off automatically.

Features:
• 2 pumps arranged horizontally
• 6 three-dimensional nozzle pipes made ​​of stainless steel
• Rotating washing basket made ​​of stainless steel, belt driven by separate motor
• Steam exhaust
• Screen plate with 2 filter baskets made ​​of stainless steel above the washing tank
• Low water level protection
• Individually height adjustable feet
