Luda.Farm MachineCam Mobility HD

Mobile & digital radio camera system for optimising the working day - with magnetic attachment

Part no.: 5070011088

Further information

Weight:
3,47 kg
Catalogue:
Electrics (p. 1012)
To be found in category:
ElectricsVideo systemsLUDA FARMMachineCam Mobility HD
A versatile and flexible vehicle camera system with a wide range of potential applications

The MachineCam Mobility HD is a digital wireless camera system that can be used for all your vehicles and machines. MachineCam Mobility HD owners usually don’t need additional vehicle and machine cameras. This camera system is an all-in-one solution for all your needs on your farm.

The MachineCam Mobility HD system has a high-resolution monitor that can be easily attached to the windscreen using the suction cup mount included. The monitor provides an excellent overview when reversing, and when coupling/installing trailers and agricultural machinery. Place the camera where you have the best overview during operations such as baling, harvesting potatoes or harvesting using a combine.

- One camera system for all machines
Robust hard-shell transport case included
The rechargeable power bank included provides power for 15 hours of camera operation
The camera and power bank are attached with strong magnets (40 kg holding force)
- System installation and transfer from machine to machine in just one minute
- Interference-free digital video - digital wireless technology that works
- Night vision up to 10 m
- Robust design and waterproof camera (IP69)

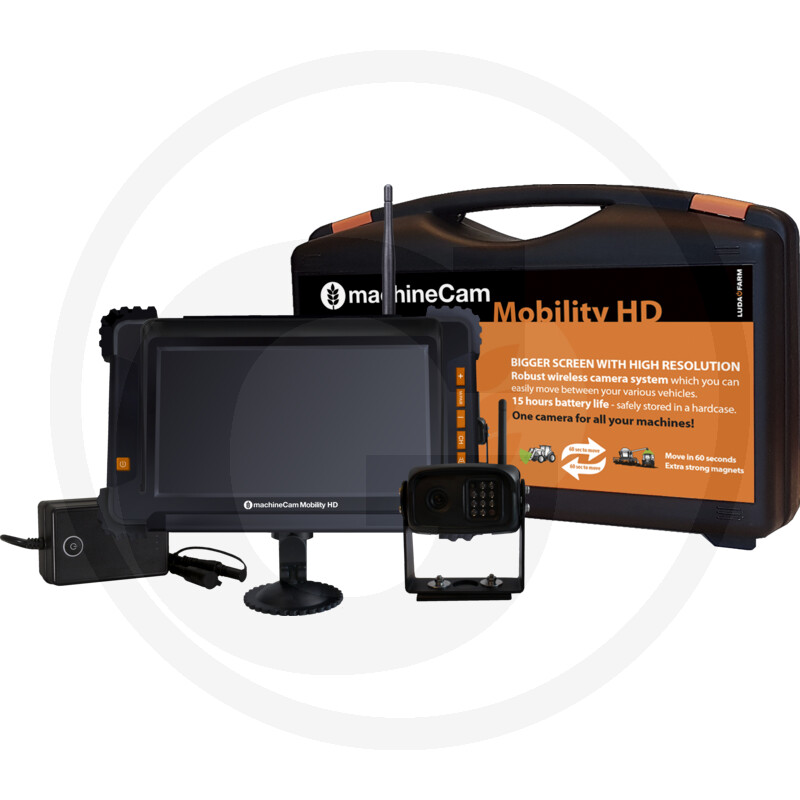

Contents: • Camera (HD)
• 7” monitor (HD)
• USB power cable
• 12V cigarette lighter adaptor power cable
• Monitor mount
• Power bank
• Charger for the power bank
• Direct power cable for the camera
• Quick installation guide

System type
2.4 GHz wireless transmitter/receiver

Camera
Operating frequency: 2400 - 2483.5 MHz
Holding force of the magnetic camera base: 40 kg
Sensor: colour CMOS
Resolution: 720 p
Maximum output power: 22 dBm
Maximum transmission range: up to 100 m
Operating temperature: -20 to +70°C
Camera IP protection class: IP69K
Minimum light requirement: 0.1 lux
Night vision: up to 10 m
Image angle: 110 degrees
Power supply: 12 V - 32 VDC
Power consumption: 2 W
Dimensions (L x W x D): 10 cm x 8 cm x 9 cm
Weight: 397 g

Monitor
Operating frequency: 2400 - 2483.5 MHz
Screen size: 7”
Latency: 100 ms
Frame rate: 30 frames/second
Operating temperature: -20 to +70°C
Brightness: 450 cd/m²
Resolution: 1024 x 600
Power supply: 5 V - 32 VDC
Power consumption: 2.5 W
Dimensions (L x W x D): 22.5 cm x 14 cm x 6.1 cm
Weight: 400 g

Power bank 8700
IP protection class: IP69K
Input voltage: 5-16 V
Output voltage: 12 / 1.2 A (max.)
Operating temperature: -20 to +60°C
Battery capacity: 8700 mAh, 3.6 V
Charging time 0 to 100 per cent: approx. 4 hours
Dimensions (L x W x D): 10.05 cm x 6.45 cm x 4.07 cm
Weight: 400 g
Charger for the power bank: 220-240 V / 12 V
Camera operating time with a full power bank: approx. 15 h
