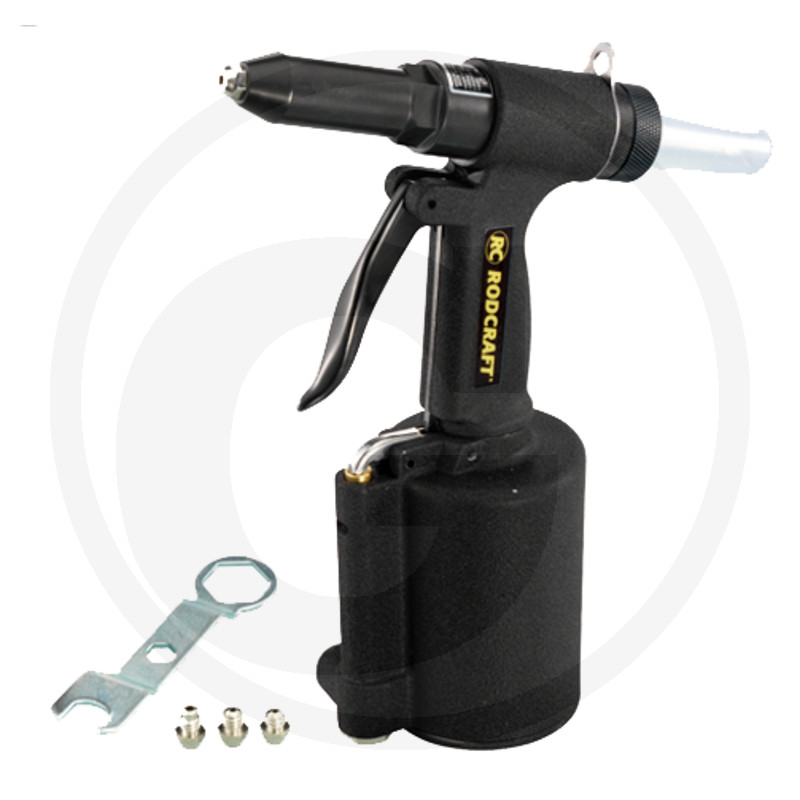

Pop riveter, model RC6700

Part no.: 6101074001

Further information

Length (mm):
225
Tensile force (t):
1,2
Attachment Ø (mm):
1,8 / 2,2 / 2,8 / 3,3
Air consumption (l/min):
520
For hose inner Ø (mm):
8
Noise level dB (A):
86,5
Max. sound level (dB):
97,5
Working pressure (bar):
6,3
Technical data:
Setting force: 8,800 Nm
Air connection: 1/4" IG
Air consumption: 1.2 l/stroke
Blind rivets: 2.4-5.0 mm
Average air consumption (l/min):
410
Inner Ø (mm):
8
Description:
- Handy blind riveter with collection container for torn off rivet mandrels
- Pneumatic-hydraulic force amplification
- Suspension possibility for spring balancers with 4 different mouthpieces
- Only for standard rivets made of soft metals such as copper, aluminum 2,4 - 5 mm
Weight:
1,80 kg
EAN codes:
4030178600180
To be found in category:
Industry & workshopCompressed airRODCRAFT compressor accessoriesPop riveterModel RC6700
• For standard rivets made of soft metals such as copper, aluminium, 2.4 - 5 mm
• Handy pop riveter with container for used mandrels
• Durable pneumatic-hydraulic power assist
• Hanging possible for spring balancers
• 4 different mouthpieces
• Only suitable for rivets made ​​of copper, aluminium or
softer material
