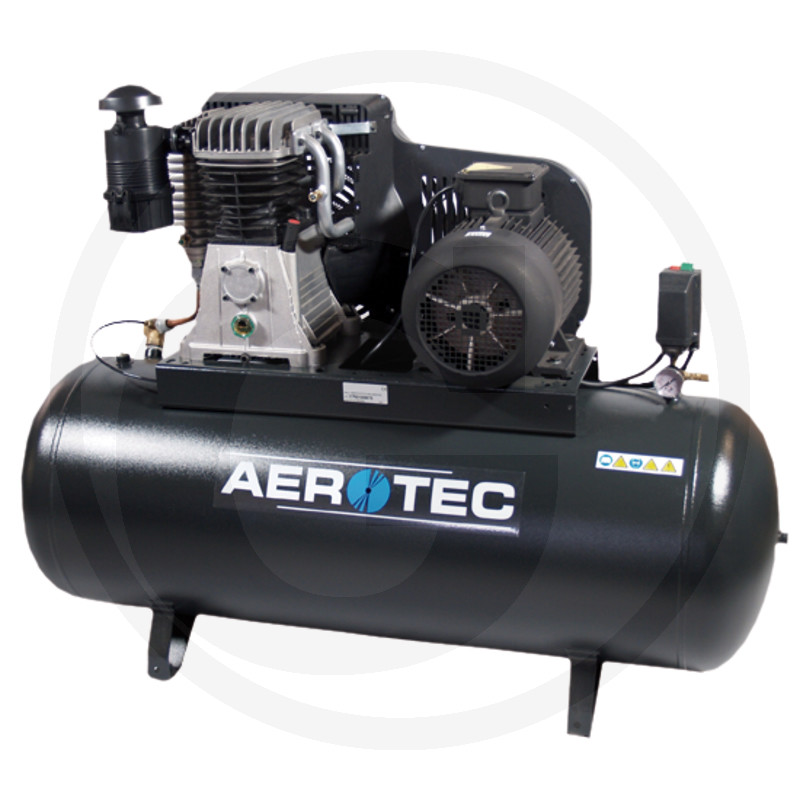

AEROTEC Compressor 950-500 PRO AK50 including ST circuit
Part no.: 610200648

Further information
- Operating pressure max. (bar):
- 15
- Suction capacity (l/min):
- 950
- Delivery volume (l/min):
- 850
- Weight (kg):
- 342
- Voltage (volts/Hz):
- 400 / 50
- Steps:
- 2
- Dimensions L x W x H (mm):
- 2030 x 680 x 1400
- Type:
- 950-500 PRO AK50 including ST circuit
- Version:
- • Piston compressor • Stationary • Horizontal tank
- Motor power (kW):
- 7,5
- No. of cylinders:
- 2
- Tank size (litres):
- 500
- Tank pressure (bar):
- 15
- Compressor speed (rpm):
- 800
- Electronic supply (V/Hz):
- 400/50
- Additional information:
- • NOT for continuous use, observe the duty cycle
• Oil-lubricated
• Including wired star delta switch
• Robust unit for demanding applications - Sound pressure level (dB(A)):
- 97/78
- Weight:
- 345,00 kg
- Catalogue:
- Tools (p. 587)
- To be found in category:
- ToolsCompressed air toolsCompressorsPiston compressor 950-500 PRO AK 50 including ST circuit
15 bar, including star-delta starter
• Low-speed, 2-stage unit, 1000 rpm for heavy-duty use
• With large aftercooler for reduced condensation in the reservoir
• With cast iron cylinders and stainless steel valves
• Oil level monitoring through sight glass
• Discharge system via pressure switch control
• With motor protection switch and pressure relief valve
• Fully automatic operation control via pressure switch
Applications: For daily use in the automotive and industrial sectors.
• Low-speed, 2-stage unit, 1000 rpm for heavy-duty use
• With large aftercooler for reduced condensation in the reservoir
• With cast iron cylinders and stainless steel valves
• Oil level monitoring through sight glass
• Discharge system via pressure switch control
• With motor protection switch and pressure relief valve
• Fully automatic operation control via pressure switch
Applications: For daily use in the automotive and industrial sectors.
