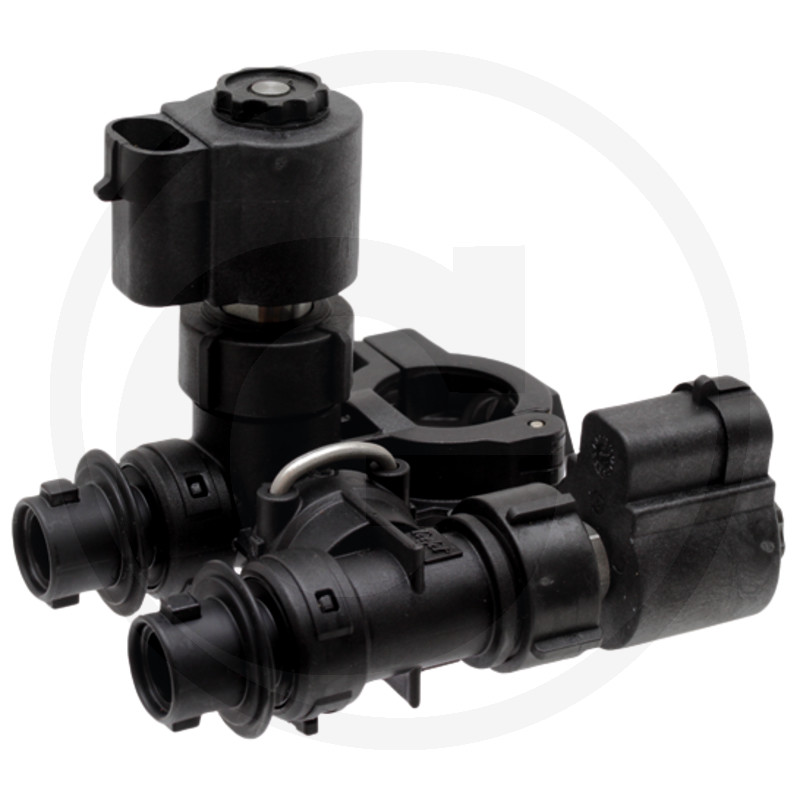

TeeJet Multiple nozzle body
for 3/4" pipe Ø
Part no.: 670QJS-B2-3/4-EE
Further information
- Weight:
- 334 g
- To be found in category:
- Plant sprayingNozzle holders and accessoriesNozzle holders, universal systemTeeJet multiple nozzle bodies series QJSFor simultaneous spraying, modular nozzle bodies for pipe and hose lines TeeJet nozzles are capable of spraying individually or simultaneously in combination with one another.
• For pipelines 1/2", 20 mm, 3/4″, 25 mm outer Ø with intake at bottom
• Shut-off optionally - also in combination - with TeeJet ChemSaver®:
pneumatic, electric, manual or diaphragm check valve
• Maximum operating pressure depending on shut-off used up to 20 bar (300 psi)
• Maximum flow rate depending on circuit up to 10.4 l/min (2.75 gpm) at 0.34 bar (5 psi) pressure drop and 15.1 l/min (4.0 gpm) at 0.7 bar (10 psi)
• Parts conducting liquid made of nylon and Viton
• Shut-off optionally - also in combination - with TeeJet ChemSaver®:
pneumatic, electric, manual or diaphragm check valve
• Maximum operating pressure depending on shut-off used up to 20 bar (300 psi)
• Maximum flow rate depending on circuit up to 10.4 l/min (2.75 gpm) at 0.34 bar (5 psi) pressure drop and 15.1 l/min (4.0 gpm) at 0.7 bar (10 psi)
• Parts conducting liquid made of nylon and Viton
