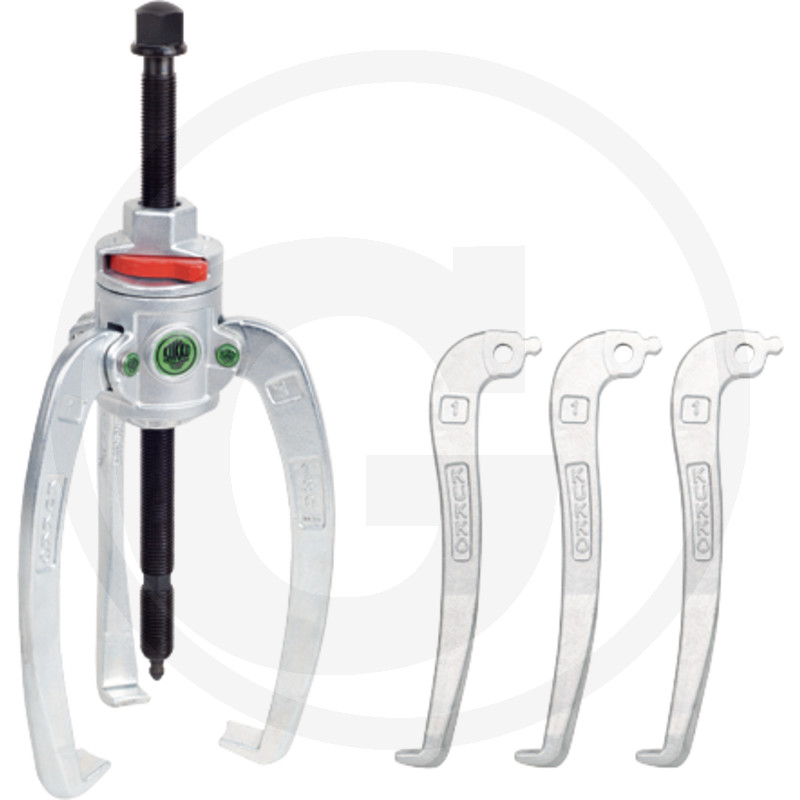

Kukko 3-arm combination puller with locking mechanism

Part no.: 7600110797

Further information

Span outside (mm):
22 - 160
Span inside (mm):
55 - 180
Clamping depth (mm):
130
Max. (t):
4
Width (mm):
39
Height (mm):
170
Length (mm):
138
Weight:
2,41 kg
EAN codes:
4021176019753
Catalogue:
Tools (p. 663)
To be found in category:
ToolsPullers3-arm combination pullers with locking mechanism
• Suitable for universal use with 2- and 3-arm cross member
• 2 sets of puller hooks for external and internal pulling included
• Can be used for external and internal pulling by changing the puller hooks
• Self-locking retaining pins ensure quick and easy puller hook replacement without having to relieve the compression spring beforehand
• The puller hook position is fixed using the easily accessible locking lever
Advantages:
• Powerful, universal, practical
• Versatile: as an external or internal puller, with 2 or 3 puller hooks, with or without slide hammer
• Automatic self-clamping and self-centring of the puller hooks
• No unwanted release from the bearing thanks to the locking lever and self-clamping action
• The puller can also be used with a slide hammer
