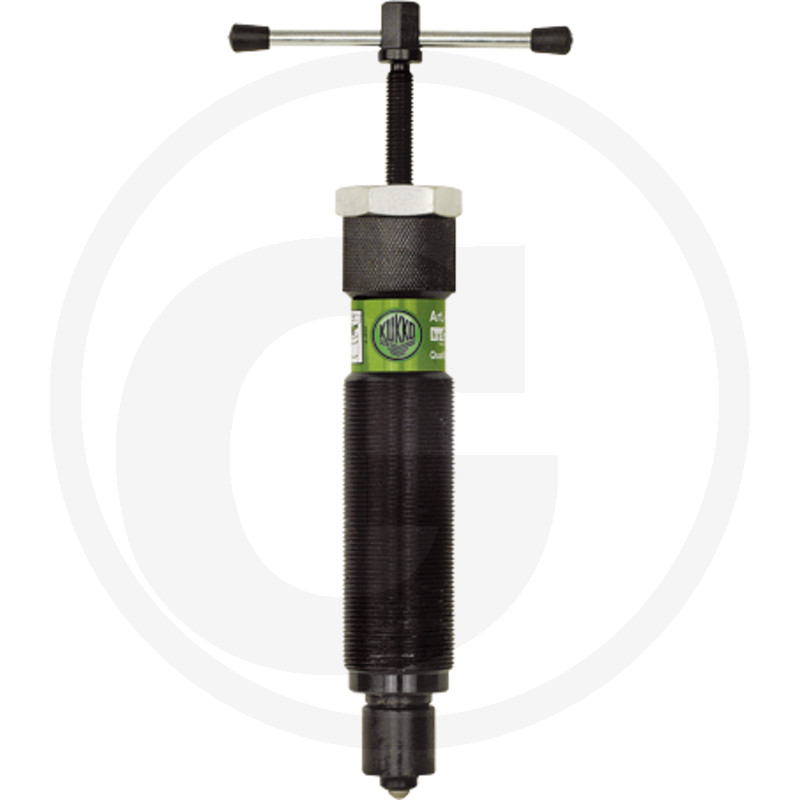

Kukko Short hydraulic spindle.

Part no.: 7600111012

Further information

Thread:
W 1 1/2"-16(55°, 16 turns)
Stroke (mm):
10
Outer hexagon drive (mm):
13
Nm:
40
Max. (t):
10
Width (mm):
45
Height (mm):
45
Length (mm):
280
Engine power (HP / kW):
40
Weight:
1,47 kg
EAN codes:
4021176034343
Catalogue:
Tools (p. 682)
To be found in category:
ToolsPullersHydraulic spindles, short
• Model series based on a modular system
• Pullers have the same hydraulic spindle
• Easily interchangeable individual parts, multiple combinations possible
• Hydraulic
• Hydraulic spindle

Advantages
• Axial piston does not rotate in the hydraulic spindle
• Spindle extensions enable quick adaptation to a wide variety of requirements
• The spindle head collar prevents the key from slipping
