Rodcraft Hydraulic alignment kit HRS10

Part no.: 7601000125

Further information

Compressive force (t):
10
Stroke (mm):
130
Length (mm):
370 - 520

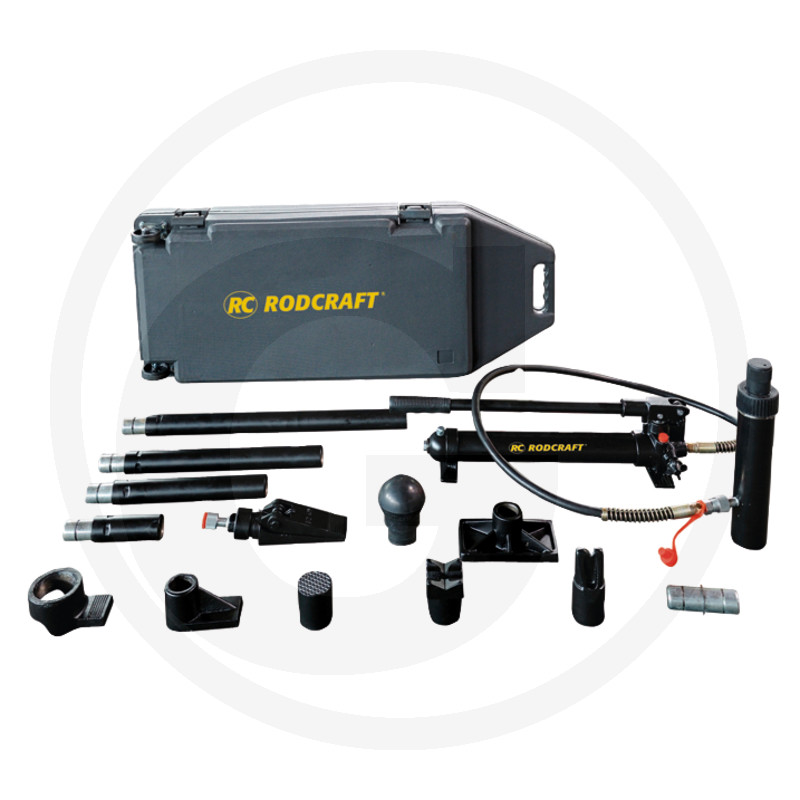

Contents:
><><>- Hand pump
- High pressure hose: 1,500 mm
- Pressure cylinder: 10 to.
- Spreader: 0.5 to
- Extension: 100 mm
- Extension: 250 mm
- Extension: 350 mm
- Extension: 400 mm
- Protective piece for piston
- Foot plate
- Prism piece
- Wedge piece, pointed
- Clamping piece for piston
Pressure max. (bar):
700
Cylinder Ø (mm):
56,5
Piston Ø (mm):
40
Length min./max. (mm):
320 - 450
Additional information:
Application:

- Pressing
- Spreading
- Clamping

- Easy assembly by means of plug-in connections
- Including complete accessories
- 17 pieces in a transport case
- Each piece with its own molded compartment

For attention:

When using :
Clamping pieces for cylinder and piston n u r 50% of the indicated force
Clamping pieces for cylinder and piston + extension n u r 25% of the indicated force
1 x extension n u r 50% of the indicated force
2 x extension n u r 25% of the indicated force
4 x extension n u r 6% of the indicated force
Weight:
31,50 kg
EAN codes:
4028203802265
To be found in category:
Industry & workshopWorkshop equipmentRODCRAFT workshop equipmentHydraulics kit HRS10
For spreading, pushing, locking. Easy to handle since all parts are inserted. Including extensions 100/200/300/400 mm.
