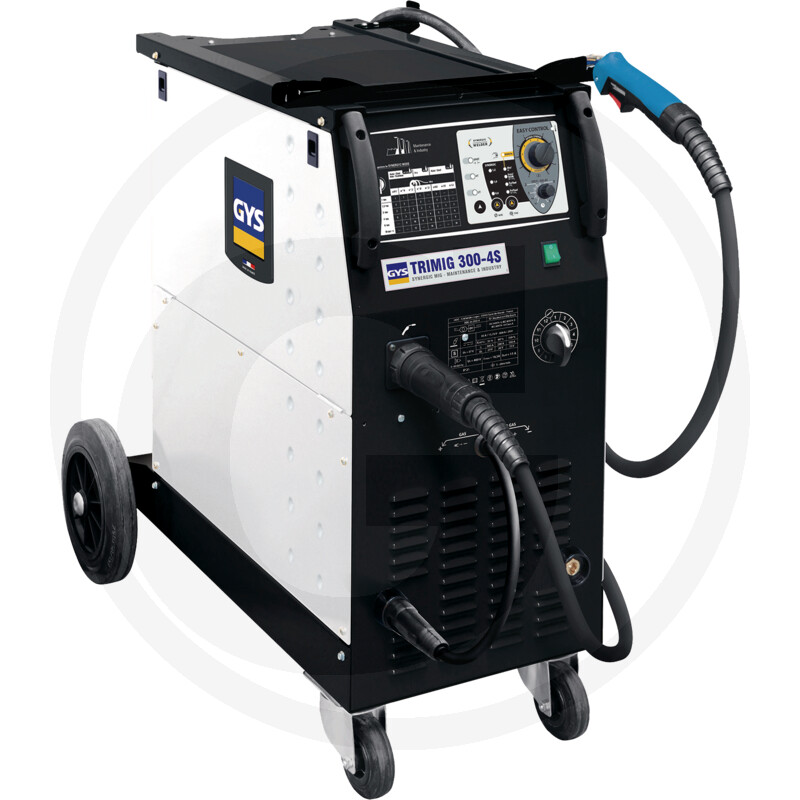

GYS Welding machine "TRIMIG 300-4S"
With accessories
Part no.: 7790800031
Further information
- Voltage (volts/Hz):
- 400/50-60
- Current requirement (A):
- 16
- Current (A):
- 35 - 300
- Control range (A):
- 35 - 300
- Switching stages:
- 12
- Open circuit voltage (V):
- 17 - 37
- Mains fuse (A):
- 16
- Electrodes (mm):
- 0,6 - 1,2
- Spool:
- 200 - 300
- Protection class:
- IP 21
- Cable length (m):
- 5
- Hose length (m):
- 4
- Weight (kg):
- 90
- Included in delivery:
- • 1 torch 350A (4 m)
• 1 earth cable (4 m) - Dimensions L x W x H (mm):
- 500 x 900 x 880
- Additional information:
- The following accessories are required for welding with 0.8 mm wire:
- 7790800037 (wire guide rolls)
- 7790800036 (basket coil adapter ECO ADAPTER 300)
- 7790800049 (contact tubes)
- 7790800051 (wire guide core) - Weight:
- 104,50 kg
- EAN codes:
- 3154020021624
- Catalogue:
- Industry & workshop (p. 326)
- Landingpage:
- Click here
The TRIMIG 300-4S is a three-phase, semi-synergic controlled welding machine and suitable for welding work in locksmith's shops and commercial vehicle workshops. It welds steel, stainless steel and aluminum and can also be used for intensive professional work up to ø 1.2 mm.
In "Synergic mode", setting the machine is quick and easy.
Controlled by a microprocessor, the machine automatically adjusts the wire feed speed.> <> <> This optimizes welding parameters and avoids complicated setting procedures.
There are 3 welding modes:
- 2T: 2-stroke welding.
- 4T: 4-stroke welding, without operating the torch switch.
- Spot: Spot welding with adjustable welding time.
The machine allows optimal welding results without setting the wire feed speed.
Only the following parameters need to be adjusted:
- wire type
- wire diameter
In "Synergic mode", setting the machine is quick and easy.
Controlled by a microprocessor, the machine automatically adjusts the wire feed speed.> <> <> This optimizes welding parameters and avoids complicated setting procedures.
There are 3 welding modes:
- 2T: 2-stroke welding.
- 4T: 4-stroke welding, without operating the torch switch.
- Spot: Spot welding with adjustable welding time.
The machine allows optimal welding results without setting the wire feed speed.
Only the following parameters need to be adjusted:
- wire type
- wire diameter
