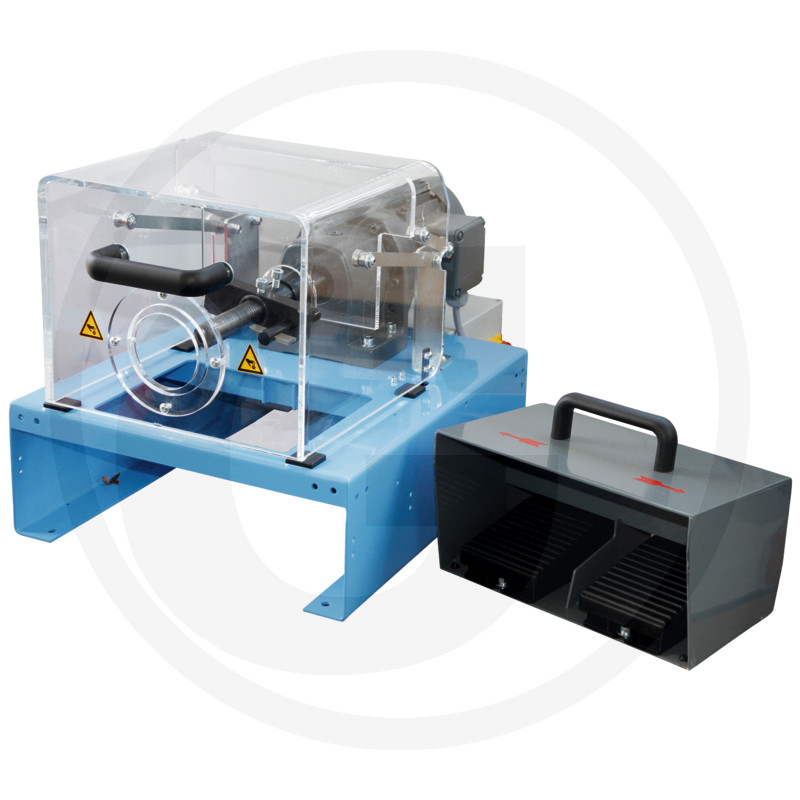

GRANIT Skiving machine, internal/external

without skiving tools

Part no.: 81504320

Further information

Weight:
35,00 kg
To be found in category:
Workshop equipmentHydraulicsGRANIT skiving equipmentSkiving machine Expertinternal/external without skiving tools
Particular advantages:
Very compact tabletop version
- External and internal skiving of hydraulic hoses
- Adjustable setting for skiving depth and length
- Fast tool change by means of quick clamping device
- End stop protection
- Operated by dual foot switch for anticlockwise and clockwise running

Application: external skiving
Hydraulic hoses from DN 06 (1/4") up to DN 50 (2")

Application: internal skiving
Hydraulic hoses from DN 13 (1/2") up to DN 50 (2")

Technical data
Geared motor: 380V, 50Hz, 0.55kW, 311 rpm
Dimensions: 760 x 240 x 330 (LxWxH mm)
Weight: 30 kg
