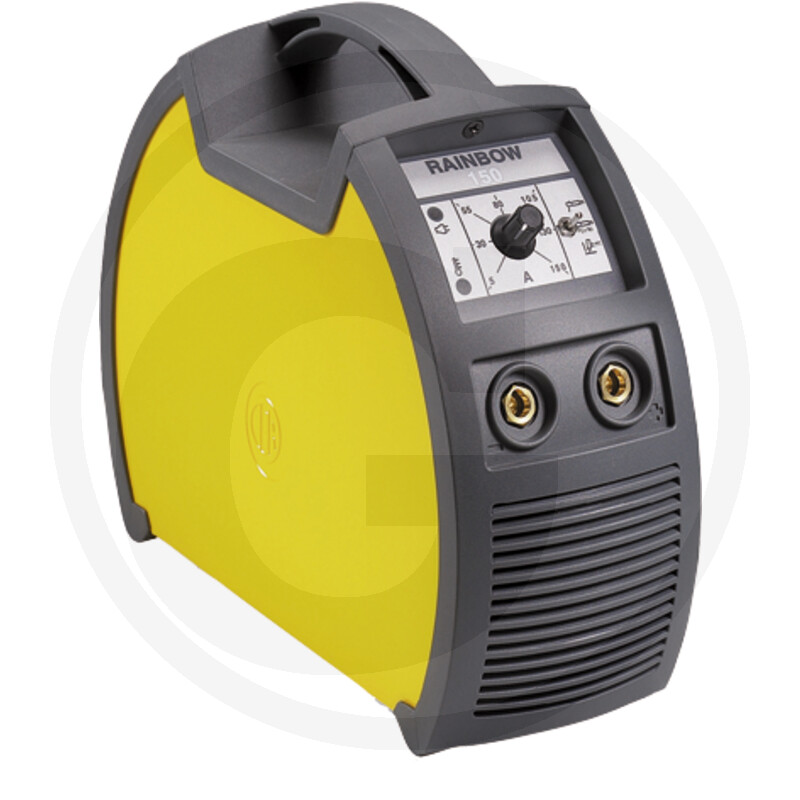

Welding apparatus electrode inverter Rainbow 150
Complete with electrode holder, earth and welding cable
Part no.: 5004100
Further information
- Weight:
- 5,92 kg
- The ideal machine for the welder as well as for the installer.
- Excellent welding properties with all types of electrodes.
- Strong 100 kHz power supply with the latest IGBT flat transformer technology.
- Continuous welding current setting, low energy consumption due to its high efficiency and power factor.
- Robust housing made of impact- and shock-resistant plastic with sturdy carrying handle and protected controls.
- Automatic hot start ignition for heavy weldable electrode types, as well as anti-stick function, prevents annealing and fusing of the rod electrode
Specifications
Voltage: 230 V
Power consumption: 3.7 - 7.6 KVA
Fuse: 16 A
Control range: 5 - 150 A
Electrode thickness: Ø 1.6 - 4 mm
Current ED 60% (40°): 120 A
Degree of protection: IP 21
Manufacturing standard: IEC 60974-1, IEC 60974-10
Weight: 4200 g
Dimensions (LxWxH): 340x115x260 mm
- Excellent welding properties with all types of electrodes.
- Strong 100 kHz power supply with the latest IGBT flat transformer technology.
- Continuous welding current setting, low energy consumption due to its high efficiency and power factor.
- Robust housing made of impact- and shock-resistant plastic with sturdy carrying handle and protected controls.
- Automatic hot start ignition for heavy weldable electrode types, as well as anti-stick function, prevents annealing and fusing of the rod electrode
Specifications
Voltage: 230 V
Power consumption: 3.7 - 7.6 KVA
Fuse: 16 A
Control range: 5 - 150 A
Electrode thickness: Ø 1.6 - 4 mm
Current ED 60% (40°): 120 A
Degree of protection: IP 21
Manufacturing standard: IEC 60974-1, IEC 60974-10
Weight: 4200 g
Dimensions (LxWxH): 340x115x260 mm
