Luda.Farm TrailerCam HD

Professional camera system for horse and cattle trailers

Part no.: 5070011129

Further information

Weight:
1,15 kg
Catalogue:
Electrics (p. 1013)
To be found in category:
ElectricsVideo systemsLUDA FARMTrailerCam HD
Monitor horses and cattle on the move

The TrailerCam HD camera system was specially developed for use during horse and cattle transport by Swedish quality brand Luda.Farm.

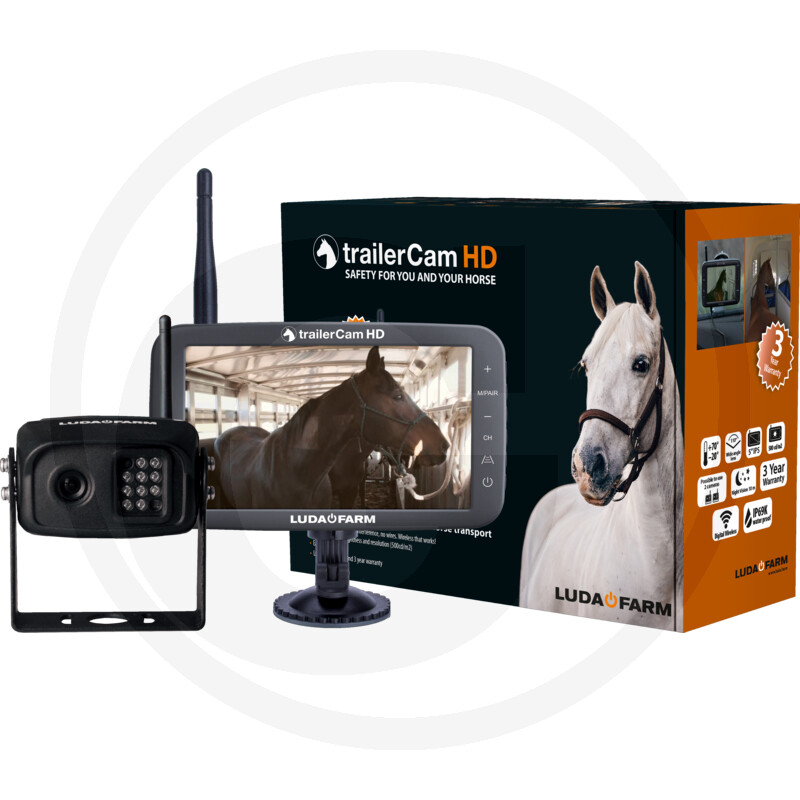

This system consists of a robust camera with wide-angle lens and a monitor with suction cup mount for your vehicle cockpit.

The system comes as a complete set, and is easy to install and operate. The camera has water protection class IP69K and a night vision function (approx. 10 m). The camera wirelessly transmits sharp, high-resolution and interference-free HD images from the slim 5'' inch monitor included at a distance of up to 100 m.
A total of 2 cameras can be connected to the monitor, meaning that you can complete this set with a reversing camera for your horse or cattle trailer. A suitable reversing camera is available from Luda.Farm as an accessory.

Contents:
• 1x camera
• 1x monitor
• 2x aerial
• 1x windscreen suction cup mount for monitor
• 1x 12 V cigarette lighter cable for monitor
• 1x DC cable set for monitor
• 1x quick installation guide

System type
2.4 GHz wireless transmitter/receiver

Camera
Operating frequency: 2400 - 2483.5 MHz
Sensor: colour CMOS
Resolution: 720 p
Maximum output power: 22 dBm
Maximum transmission range: up to 100 m
Operating temperature: -20 to +70°C
Camera IP protection class: IP69K
Minimum light requirement: 0.1 lux
Night vision: up to 10 m
Viewing angle: 110 degrees
Power supply: 12 V - 32VDC
Power consumption: 2 W
Dimensions (L x W x D): 10 cm x 8 cm x 9 cm
Weight: 397 g

Monitor
Operating frequency: 2400 - 2483.5 MHz
Screen: 5" IPS
Maximum transmission range: up to 100 m
Latency: 100 ms
Frame rate: 30 f/s
Operating temperature: -20 to +70°C
Brightness: 500 cd/m²
Resolution: 1280 × 720
Power supply 9 V - 30 VDC
Power consumption: 3 W
Dimensions (L x W x D): 13.6 cm x 8 cm x 1.1 cm
Weight: 110 g
