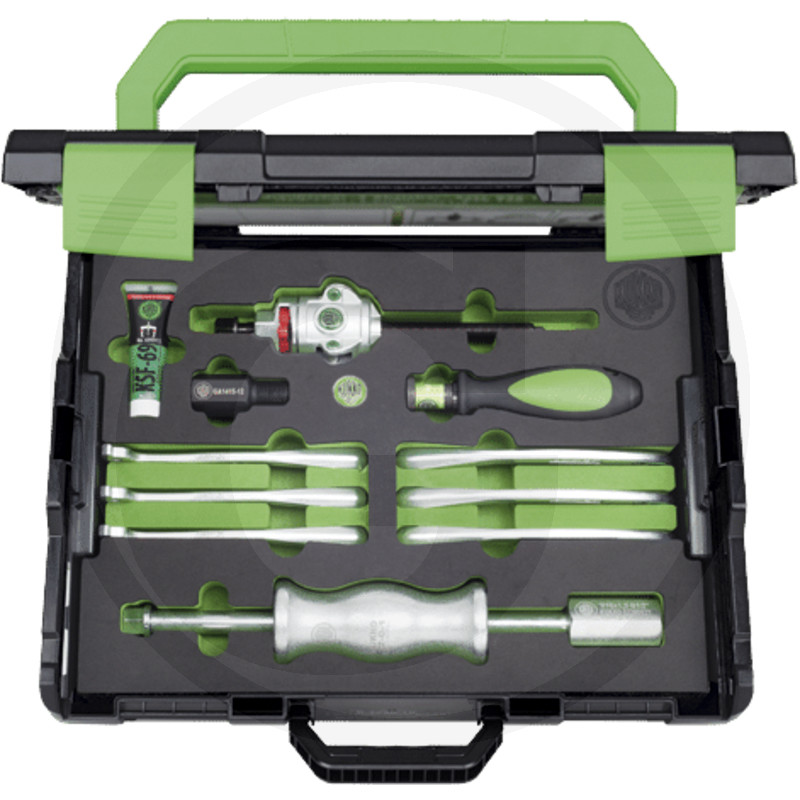

Kukko 3-arm combination puller set with locking mechanism

Combination puller set in L-Boxx

Part no.: 7600111162

Further information

Span outside (mm):
22 - 160
Span inside (mm):
55 - 180
Clamping depth (mm):
130
Max. (t):
4
Technical data:
Total length of slide hammer: 320 mm
Slide hammer connection thread: M16 x 1.5
Weight:
2,42 kg
EAN codes:
4021176181382
Catalogue:
Tools (p. 663)
To be found in category:
ToolsPullers3-arm combination puller set with locking mechanism
• For pulling bearings, gear wheels, discs, etc.
• Suitable for universal use thanks to 2- and 3-arm cross member
• 2 sets of puller hooks for external and internal pulling included
• Can be used for external and internal pulling by changing the puller hooks
• Self-locking retaining pins ensure quick and easy puller hook replacement without having to relieve the pressure spring beforehand
• The puller hook position is fixed by the easily accessible locking lever
• The innovative spring technology enables a compact and maintenance-free design
• Ergonomic design for better handling
• Durable thanks to encapsulated mechanism
• Optimum adaptation of the spindle to the shaft thanks to the double-sided spindle tip (ball and tip)
• The rounded spindle head becomes the spindle tip when used with the slide hammer
• Kit in the tried and tested KUKKO L-Boxx
• Safe storage in special foam
