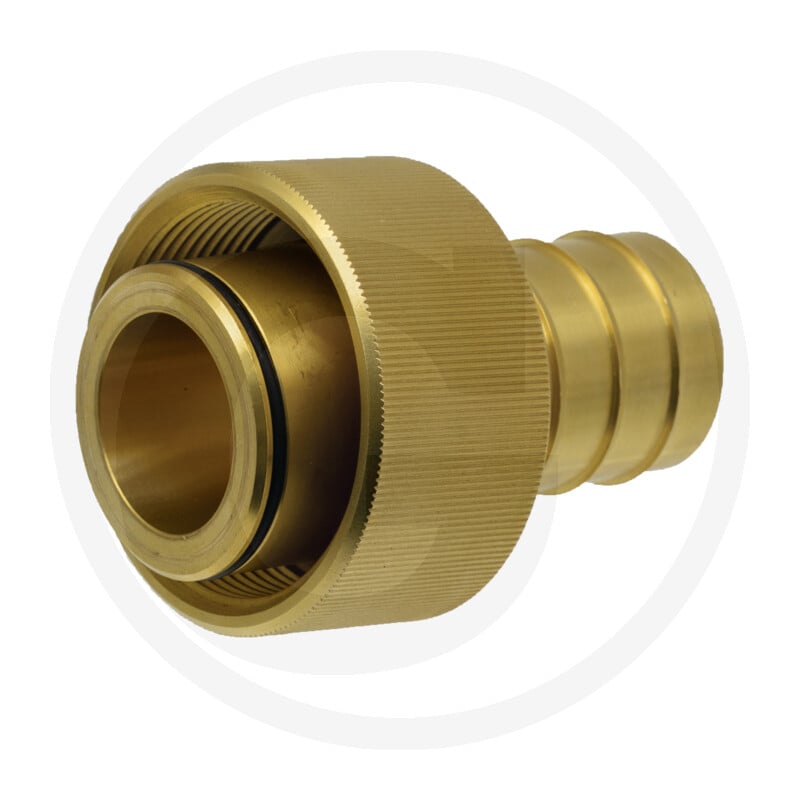

GRANIT Connection M 52 straight

Part no.: 85003012

Further information

Connection thread:
M52
Weight:
510 g
Catalogue:
Engine (p. 144)
To be found in category:
EngineUniversal engine partsOil service valves and accessoriesConnectors M52
Oil service valves are designed for unpressurised oil draining.
Simple, safe handling and an optimum flow rate were the most important features when developing these oil service valves.
Other features include:
- High temperature resistance (-30 - +200°C)
- Low flow resistance
- 100% leak tested
Oil service valves are TÜV tested and DLG approved
Functionality:
The illustration shows an oil service valve installed in a container or oil sump filled with a medium containing oil. After removing the protective cap supplied, a suitable connector is screwed onto the valve. As the connector is screwed on, the valve plate opens and the liquid flows unhindered into a waiting container. When the liquid has drained off completely, the connector is unscrewed again. The valve plate is lowered and the valve is tightly closed once again. The protective cap is now screwed on, fresh medium is poured in, and everything is ready.
Advantages:
- No danger of burns from hot oil
- No contamination of machine and environment
- No destruction of the oil sump thread
- No gasket change, oil can be changed anywhere
- Less time required
